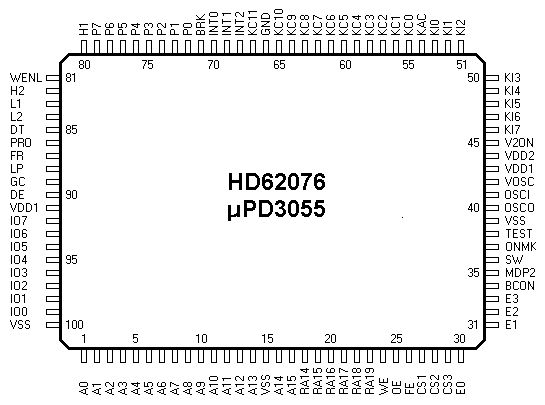

| Pin | Symbol | Function |
|---|---|---|
| 1..14 | A0..A13 | address bus |
| 15 | VSS | negative supply voltage rail |
| 16..17 | A14..A15 | address bus |
| 18..23 | RA14..RA19 | address bus |
| 24 | WE | bus write strobe signal, active low |
| 25 | OE | bus read strobe signal, active low |
| 26..29 | FE, CS1..CS3 | chip enable signals, active low CS3: RAM 64kB |
| 30..33 | E0..E3 | Chip enable signals, active low. E0: internal ROM 128kB E2: memory card, pin 20 E3: memory card, pin 33 |
| 34 | BCON | |
| 35 | MDP2 | |
| 36 | SW | |
| 37 | ONMK | |
| 38 | TEST | |
| 39 | VSS | negative supply voltage rail |
| 40,41 | OSCO, OSCI | ceramic resonator 2.01MHz, OSCO is the output from the inverting oscillator amplifier |
| 42 | VOSC | Power supply for Clock |
| 43,44 | VDD1, VDD2 | positive supply voltage rail |
| 45 | V2ON | Power on output signal |
| 46..53 | KI7..KI0 | keyboard matrix input port, can be accessed through the KY register |
| 54..65 | KAC, KC0..KC10 | keyboard matrix output port, controlled by the KY register |
| 66 | GND | negative supply voltage rail |
| 67 | KC11 | keyboard matrix output port, controlled by the KY register |
| 68 | INT2 | interrupt input, driven from the pin 28 of the chip HD62063 |
| 69 | INT1 | interrupt input, connected to P01 (serial data input) |
| 70 | INT0 | interrupt input, connected to P02 (state of the power switch) |
| 71 | BRK | |
| 72..79 | P0..P7 | 8-bit bi-directional port, can be accessed through the PD register Function of individual bits: P1 receives serial data from the communication port P2 receives high voltage level when the power switch is in the ON position, driven from the pin 14 of the gate array μPD65005 P3 senses the card presence (low voltage level when a card is inserted) P4,P5 drive two lines of the keyboard matrix |
| 80 | H1 | 4-bit output port, controlled through the PE register |
| 81 | WENL | connected to VSS |
| 82..84 | H2, L1, L2 | 4-bit output port, controlled through the PE register L1: memory card, pin 32 (high voltage level enables access to the RAM inside the card) |
| 85 86 87 88 89 90 | DT PRO FR LP GC DE |
LCD driver control signals |
| 91 | VDD1 | positive supply voltage rail |
| 92..99 | IO7..IO0 | bi-directional data bus |
| 100 | VSS | negative supply voltage rail |

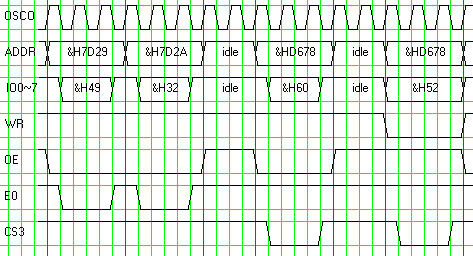

The diagram illustrates the system bus waveforms taken while executing following instruction:
7D29: 49 32 XR (IX),&H32

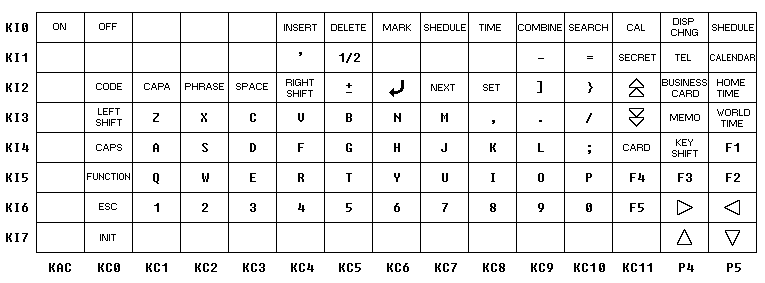

The columns of the keyboard matrix are driven from the 13-bit output port KC and two lines of the 8-bit port P0. A pressed key makes contact between selected column and row. The rows are sensed by the 8-bit input port KI.
01 - VSS 16 - IO5 31 - A17 02 - A12 17 - IO6 32 - L1 03 - A7 18 - IO7 33 - E3 04 - A6 19 - VCC 34 - A18 05 - A5 20 - E2 35 - A19 06 - A4 21 - A10 36 - IO0 07 - A3 22 - RD 37 - IO1 08 - A2 23 - A11 38 - IO2 09 - A1 24 - A9 39 - IO3 10 - A0 25 - A8 40 - IO4 11 - IO0 26 - A13 41 - IO5 12 - IO1 27 - WR 42 - IO6 13 - IO2 28 - A14 43 - IO7 14 - IO3 29 - A15 44 - P03 15 - IO4 30 - A16 45 - VDD
pin 19 - VCC, supply voltage when the organizer is turned on
pins 36..43 - duplicate the function of pins 11..18
pin 44 - microprocessor port P3, senses the card presence, connected to VSS inside the card
pin 45 - VDD, backup supply voltage
