Elektronika MK-90 read-only memory cartridge

The photos and schematic were kindly contributed by Mahmoud Yassine.

Description

The cartridge stores firmware for an MK-90 controlled gamma-ray spectrometer. It's equivalent to conventional MPO-10 ones, except that the RAM chips are replaced with an EPROM and some glue logic.

What's inside

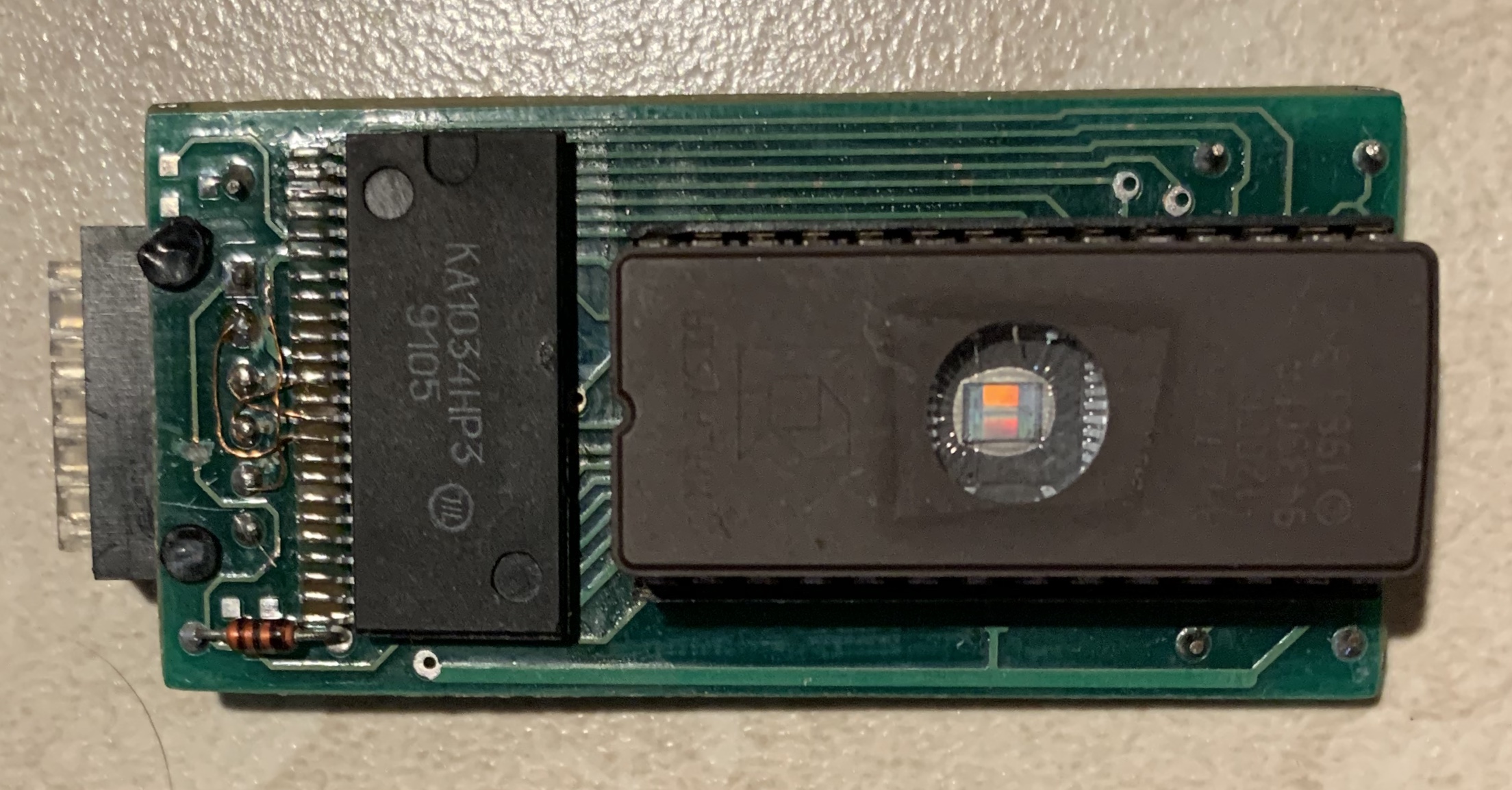

Photograph of the PCB (top side)

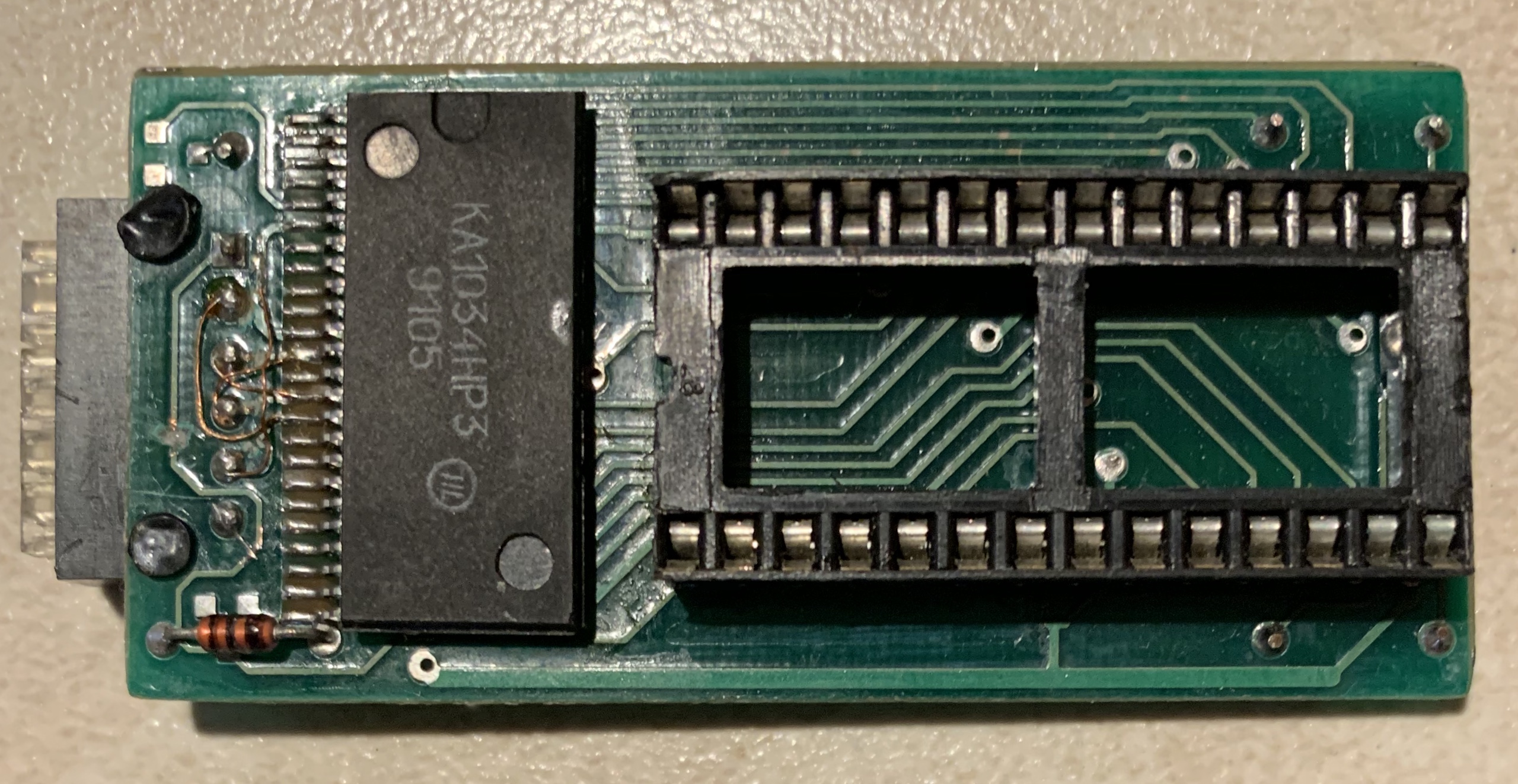

Photograph of the PCB with removed EPROM chip

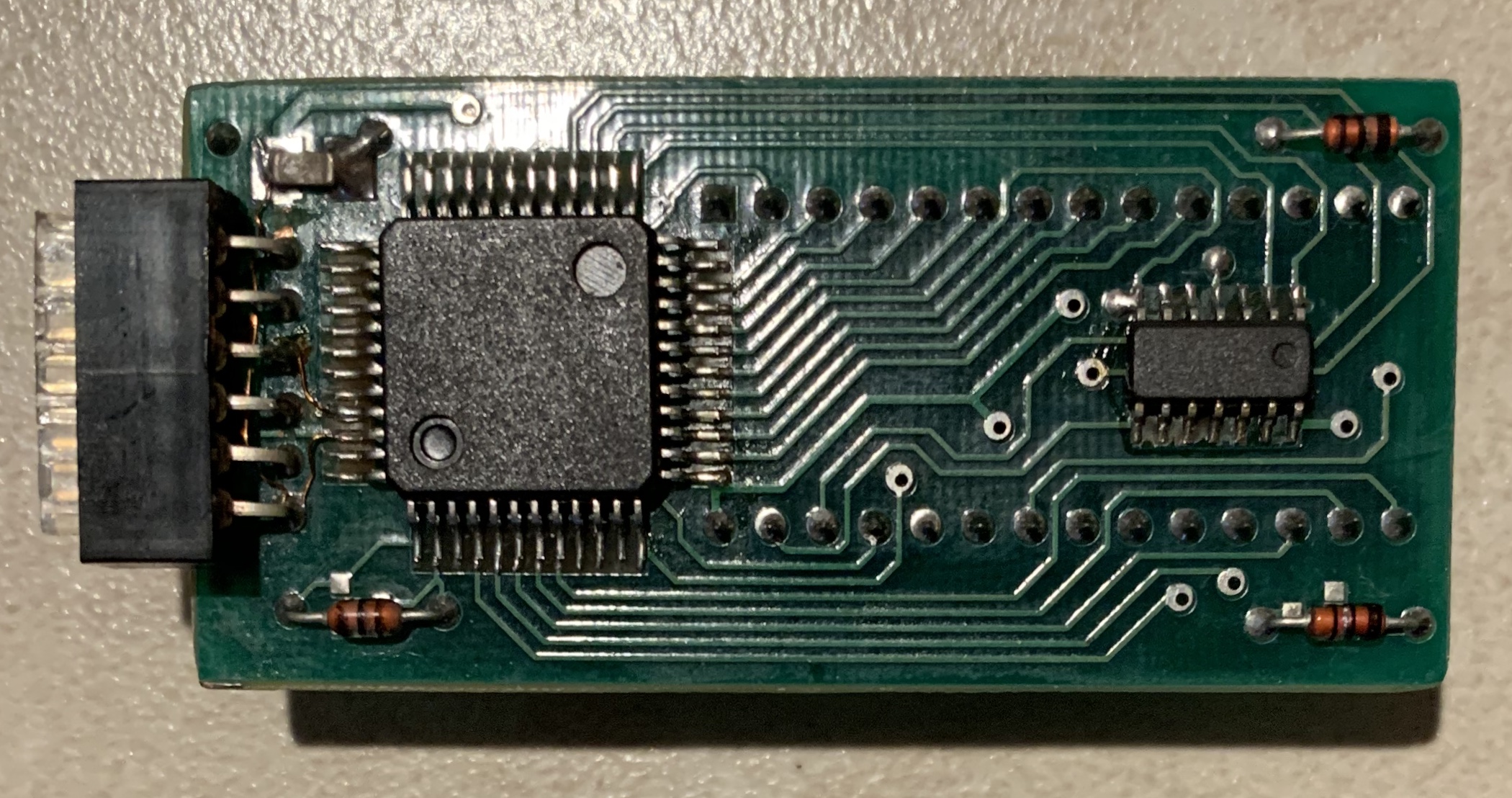

Photograph of the PCB (bottom side)

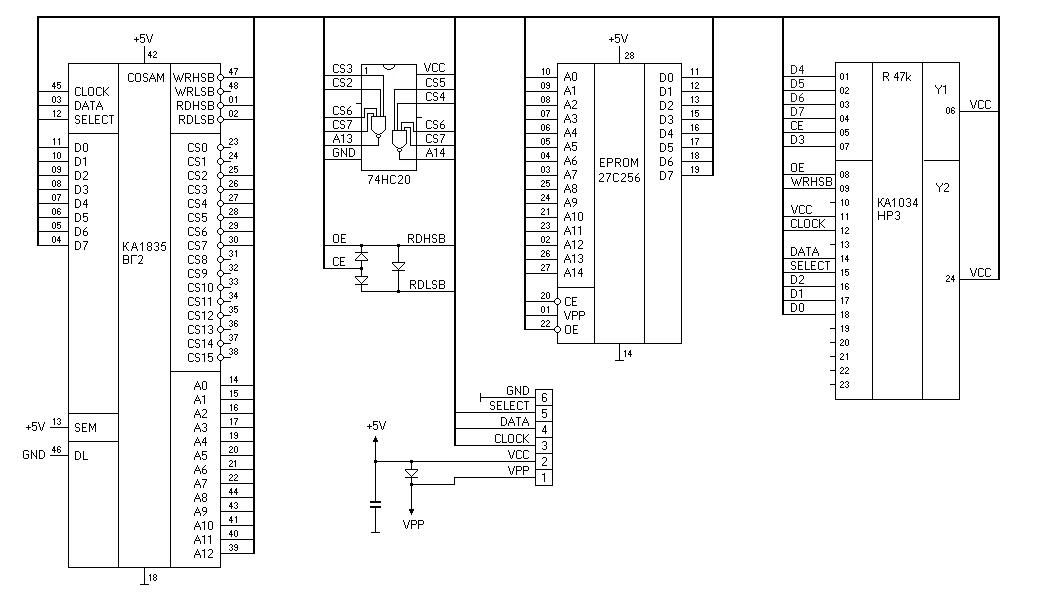

Circuit diagram

Circuit diagram
